Descriere produs

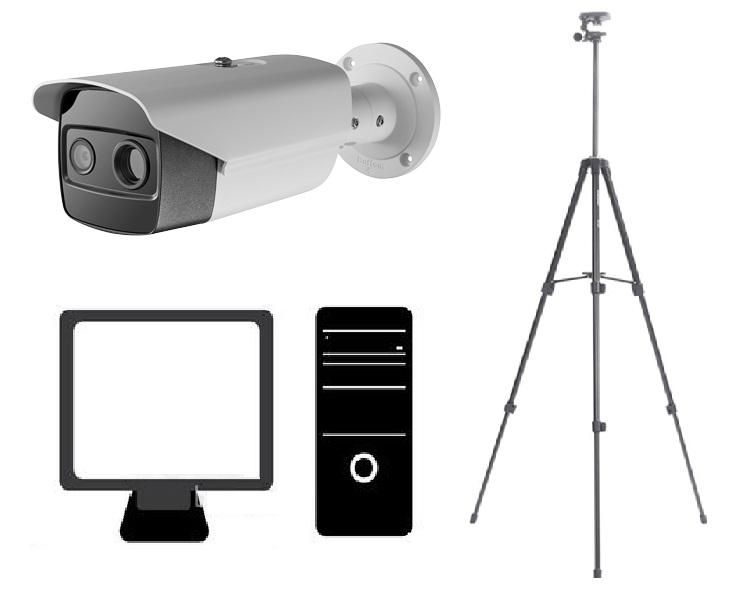

Termoscanner pentru detectarea temperaturii corpului. Distanta de detectie este 4-8 metri si detecteaza cu o acuratete de 0,5 grade. Este o camera dual bioptic pentru detectarea febrei.
| Thermal sensor | 384x288 Vanadium Oxide |
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Minimum illumination (for optical part) | Colour: 0.0089 Lux @ (F1.6, AGC ON), IR up to 50 m distance |
| Main Stream rate | 384x288(50fps) Thermal / 2560x1520 (25fps) Optical |
| Extra Stream rate | 384x288 (50fps) Thermal / 704x576 (25fps) Optical |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Lens | 15 mm (Therm) / 6 mm (Opt) |
| Viewing angle | 24.2°×18.4° (Term) / 40.0°×22.4° (Opt) |
| Thermal sensitivity | < 35mK (0.05 º C) |
| Thermal measurement range | 30 ~ 45ºC / High precision ± 0.5ºC |
| Spectral range | 8~14μm |
| Pitch detector | 17μm |
| VCA ranges | 3 temperature measurement rules, up to 21 rules in total (10 points, 10 areas and 1 line) |
| Intelligent functions | Body temperature measurement |
| Features in Measurement | Up to 30 face detections in the same scene / Between 6 ~ 9 m of distance in the detection |
| Audio | 1 Input / 1 line level output 600 ohm |
| Alarm | 2 / 2 In / Relay |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power supply | 18~30VAC, 9~15VDC, PoE IEEE802.3at |
| Temp. operation | 10º C ~ +35º C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 376.1 mm (Fo) x 118.1 (An) x 119.1 (Al) mm |
| Weight | 1.82 Kg |
