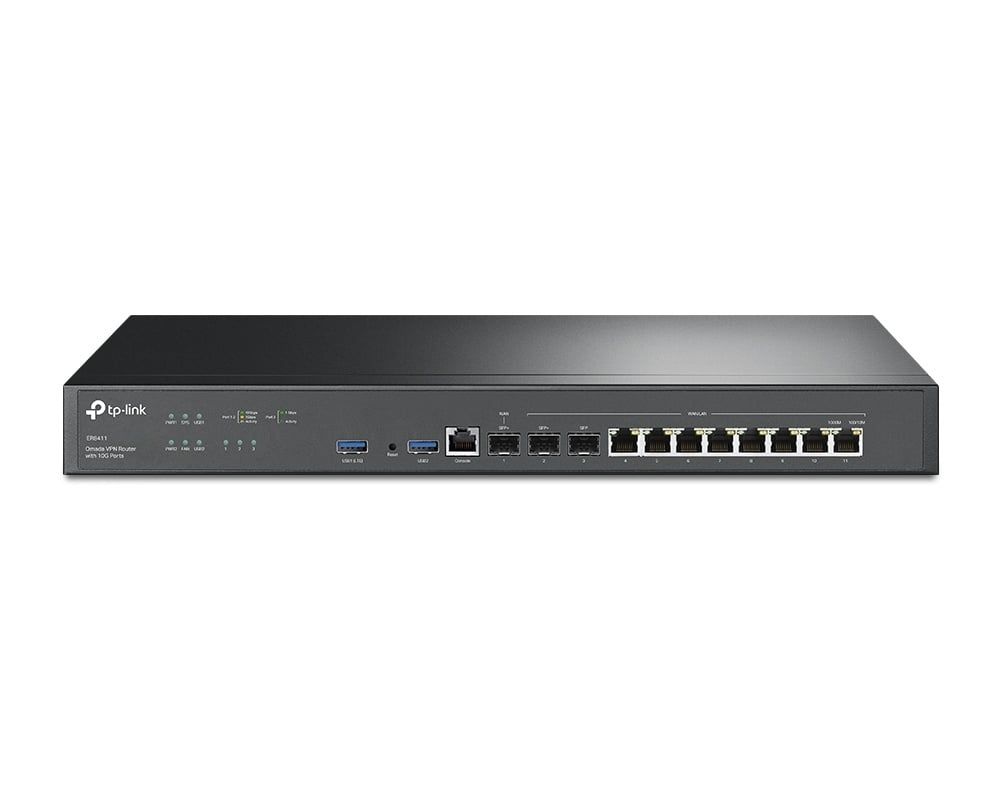

Router 8 porturi, 10G, management centralizat, 3 SFP, Omada, sursa dubla de alimentare, Tp-Link, ER8411
Router 12 porturi, 3x 10G SFP+, 8x WAN/LAN GB RJ45, management centralizat Omada, sursa dubla de alimentare, Tp-Link, ER8411
|
Adauga intrebare
Descriere
Descriere produs
Router 8 porturi, 10G, management centralizat, 3 SFP, Omada, sursa dubla de alimentare, Tp-Link, ER8411
Specificatii tehnice
Specificatii tehnice
- Garantie 24 luni
- Brand Tp-Link
| CARACTERISTICI HARDWARE | |
| Interfata |
2x Porturi 10GE SFP+ (1x WAN, 1x WAN/LAN)
1x Port WAN/LAN SFP Gigabit 8x Porturi WAN/LAN RJ45 GIgabit 1x Port RJ45 pe consola 2x Porturi USB 3.0 (se poate conecta un Modem 4G/3G Modem pentru Backup LTE WAN) |
| Butoane | Buton resetare |
| Alimentator |
Surse duale de alimentare (100–240 VAC, 50/60 Hz)
|
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensiuni (L x l x H) | 440 x 220 x 44 mm (17.3 x 8.7 x 1.7 inch) |
| Consum maxim | 26.36 W (cu USB 3.0 conectate) 19.12 W (fara USB 3.0 conectate) |
| PERFORMANTA | |
| Sesiuni Concomitente | 2.300.000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | Upload: 9445.82 Mbps Download: 9449.26 Mbps |
| NAT (DHCP) | Upload: 9426.83 Mbps Download: 9426.20 Mbps |
| NAT (PPPoE) | Upload: 9413.96 Mbps Download: 9102.01 Mbps |
| NAT (L2TP) | Upload: 4230.62 Mbps Download: 4169.53 Mbps |
| NAT (PPTP) | Upload: 3933.86 Mbps Download: 3821.97 Mbps |
| 64 Byte Packet Forwarding Rate | Upload: 1080 Mbps Download: 1030 Mbps |
| IPsec VPN Throughput | SHA1-AES256: 2140.45 Mbps SHA2-AES256: 2080.20 Mbps |
| OpenVPN | 1665.64 Mbps |
| L2TP VPN Throughput | Unencrypted: 5013.50 Mbps Encrypted: 2274.74 Mbps |
| SSL VPN Throughput | 1511.10 Mbps |
| FUNCTII DE BAZA | |
| Tip Conexiune WAN |
Static/Dynamic IP
PPPoE PPTP L2TP 6to4 Tunnel Pass-Through Mobile Broadband: Modem 4G/3G pentru backup via port USB |
| Clonare MAC | Modify WAN/LAN MAC Address*4 |
| DHCP | DHCP Server/Client DHCP Address Reservation Multi-net DHCP Multi-IP Interfaces |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| FUNCTII AVANSATE | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing Policy Routing |
| Controlul Latimii de Banda | IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth |
| Echilibrarea Traficului | Intelligent Load Balance Application Optimized Routing Link Backup (Timing*5, Failover) Online Detection |
| NAT | One-to-One NAT*5 Multi-Net NAT Virtual Server Port Triggering*5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Securitate | SPI Firewall VPN Passthrough FTP/H.323/PPTP/SIP/IPsec ALG DoS Defence, Ping of Death Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| SSL VPN | SSL VPN Server SSL VPN Client 500 OpenVPN Tunnels |
| VPN IPsec |
300 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm IKE v1/v2 MD5, SHA1 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| VPN PPTP | PPTP VPN Server PPTP VPN Client (32)*6 300 Tunnels (Shared with L2TP) PPTP with MPPE Encryption |
| VPN L2TP | L2TP VPN Server L2TP VPN Client (32)*6 300 Tunnels (Shared with PPTP) L2TP over IPSec |
| OpenVPN | OpenVPN Server OpenVPN Client (10)*6 110 OpenVPN Tunnels |
| SECURITATE | |
| Filtrare | WEB Group Filtering*5 URL Filtering Web Security*5 |
| Inspectie ARP | Sending GARP Packets*5 ARP Scanning*5 IP-MAC Binding*5 |
| Protectie Atacuri | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Access Control |
Source/Destination IP Based Access Control
|
| AUTHENTICATION | |
| Web Authentication |
No Authentication
Simple Password*2 Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2） External Radius Sever External Portal Sever*2 Facebook Check-In*2 Instagram Follow*2 |
| MANAGEMENT | |
| Omada App |
Da (prin OC300, OC200, Omada Cloud-Based Controller sau Omada Software Controller)
|
| Centralized Management | Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access |
Da (prin OC300, OC200, Omada Cloud-Based Controller sau Omada Software Controller)
|
| Servicii |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
|
| Mentenanta | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute)*5 NTP Synchronize*5 Syslog Support |
| Zero-Touch Provisioning |
Da. Necesita utilizarea unui Omada Cloud-Based Controller.
|
| Management Features | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
| ALTELE | |
| Certificari | CE, FCC, RoHS |
| Continut Pachet | ER8411 Cablu de alimentare Kit de montare in rack Ghid de instalare rapida |
| Cerinte de sistem |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ sau Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX sau Linux
|
| Mediu |
Temperatura de functionare: 0–40 ℃ (32–104 ℉);
Temperatura de depozitare: -40–70 ℃ (-40–158 ℉) Umiditate mediu operare: 10–90% RH fara condens Umiditate mediu depozitare: 5–90% RH fara condens |
